RNA4900 UU Needle roller bearing 14x22x13
|
RNA4900 UU Needle roller bearing 14x22x13
|
|
|
Part Number:
Kit7909
Our Low Price:
$4.95
Shipping Weight: 0.1 pounds
|
Rolling Bearing
|
Needle Roller Bearing
RNA4900UU
|
|

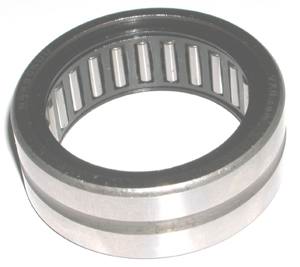

Machined type needle roller bearing RNA4900UU,
the dimensions of the RNA4900UU illustrated in the mechanical drawing shown below,
the RNA4900UU inner diameter is 13mm, the outer
diameter is 22mm, width is 13mm.
- Item: Needle Roller Bearing
- Size: 14mm x 22mm x 13mm
- Dimensions: 14*22*13 mm/Metric
- ID (inner diameter)/Bore=14mm
- OD (outer diameter)=22mm
- Width/Height/thickness=13mm
- Type: Needle Roller Bearing RNA4900UU
- Closures: Rubber Sealed (both sides)
- Quantity: One Bearing
|
|
| Item Name |
dr |
D |
B |
Basic Load Rating |
| Cr (Dynamic) lbF |
Cor (Static) lbF |
| RNA4900UU |
14 |
22 |
13 |
1913 |
2070 |
|
