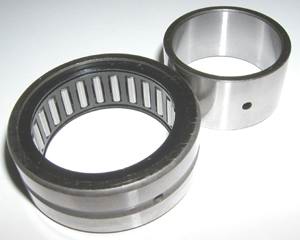

NA4905 UU Needle roller bearing 25x42x18
	Part Number: Kit7895 Our Low Price: $9.95 Shipping Weight: 0.3 pounds
	Quantity:

Rolling Bearing

Needle Roller Bearing NA4905UU

Machined type needle roller bearing NA4905UU, the dimensions of the NA4905UU illustrated in the mechanical drawing shown below, the NA4905UU inner diameter is 25mm, the outer diameter is 42mm, width of the cone (inner ring) is 18mm, and the outer ring width is 17mm. Item: Needle Roller Bearing Dimensions: 25*42*18 mm/Metric ID (inner diameter)/Bore=25mm OD (outer diameter)=42mm Width/Height/thickness=18mm Size: 25mm x 42mm x 18mm Type: Needle Roller Bearing NA4905UU Closures: Rubber Sealed (both sides) Quantity: One Bearing (inner cone is included)

Item Name d dr D B B1 Basic Load Rating Dimension Cr (Dynamic) lbF Cor (Static) lbF Ds (min.) dh (max.) NA4905UU 25 30 42 17 18 5310 7088 27 40
